Corrugated Side Wall Conveyor Belt
Explore Vulcotec corrugated sidewall conveyor belts. Share your material, conveyor layout and required belt dimensions to discuss the specification for a quotation.
Brand: Vulcotec
Base belt widths listed: 300–1800 mm
Origin: China
Lead time: Confirmed per order
Product Detail

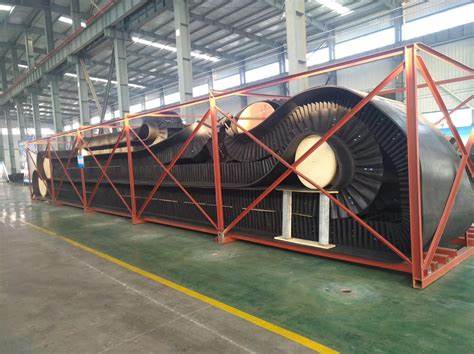

Corrugated Sidewall Conveyor Belts
Vulcotec corrugated sidewall conveyor belts can be specified with a base belt, sidewalls and cleats to suit the conveyor layout and material handling requirement.
Listed Dimensional Combinations
| Base belt width (mm) | Sidewall height H (mm) | Cleat height H1 (mm) |
|---|---|---|
| 300 | 40 | 35 |
| 300 | 60 | 55 |
| 300 | 80 | 75 |
| 400 | 60 | 55 |
| 400 | 80 | 75 |
| 400 | 100 | 90 |
| 500 | 80 | 75 |
| 500 | 100 | 90 |
| 500 | 120 | 110 |
| 650 | 120 | 110 |
| 650 | 140 | 140 |
| 800 | 120 | 110 |
| 800 | 160 | 140 |
| 800 | 200 | 180 |
| 1000 | 160 | 140 |
| 1000 | 200 | 180 |
| 1000 | 240 | 220 |
| 1200 | 160 | 140 |
| 1200 | 200 | 180 |
| 1200 | 240 | 220 |
| 1200 | 300 | 240 |
| 1400 | 200 | 180 |
| 1400 | 240 | 220 |
| 1400 | 300 | 280 |
| 1400 | 400 | 360 |
| 1600 | 200 | 180 |
| 1600 | 240 | 220 |
| 1600 | 300 | 280 |
| 1600 | 400 | 360 |
| 1800 | 240 | 220 |
| 1800 | 300 | 280 |
| 1800 | 400 | 380 |
| 1800 | 500 | 460 |
The table lists specific dimensional combinations, not every possible combination within each range. Send a conveyor or existing-belt drawing to confirm the configuration for your application.
Information to Include in Your Enquiry
- Material name, particle size, bulk density, moisture and operating temperature.
- Throughput, belt speed, conveying angle and conveyor layout.
- Base-belt strength, width, cover thicknesses and required length.
- Sidewall height, cleat form and spacing, pulley diameters and transitions.
- Quantity and delivery destination.
Lead time is confirmed for each order.
For a quotation, email info@vulcotec.com with your application, belt specification, required quantity and destination.
What should I specify for a corrugated sidewall conveyor belt?
Provide a conveyor layout drawing, material details, required capacity, belt width, sidewall and cleat requirements, pulley dimensions and operating conditions. Vulcotec's published dimensional combinations are a starting point for discussion; the base belt, sidewalls and cleats must be reviewed together for the application.
