Steel Cord Conveyor Belt
Explore Vulcotec steel cord conveyor belts for high-strength, heavy-load conveying. Review the published range and send your project specifications for a quotation.
Brand: Vulcotec
Belt strength: ST630–ST5400
Width: 600–2600 mm
Origin: China
Lead time: Confirmed per order
Product Detail

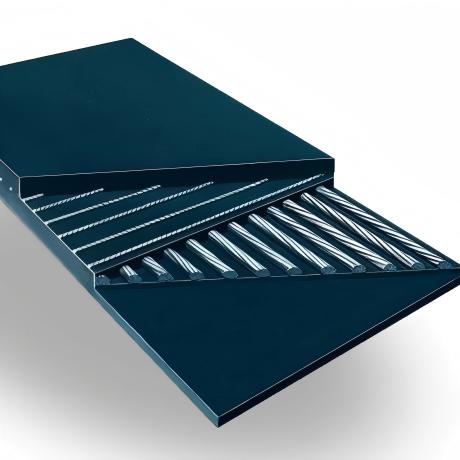

Steel Cord Conveyor Belts
Vulcotec steel cord conveyor belts are used for high-strength, long-distance and heavy-load material handling. Confirm the belt construction against the actual conveyor tension, pulley arrangement and loading conditions.
Product Range
| Item | Specification |
|---|---|
| Belt strength | ST630–ST5400 |
| Belt width | 600–2600 mm |
| Product origin | China |
Steel Cord Belt Dimensions
| Belt strength (ST-No.) | Cord diameter D (mm) | Pitch P (mm) | Standard cover thickness (mm) |
|---|---|---|---|
| ST-630 | 3.0 | 10 | 5+5 |
| ST-800 | 3.5 | 10 | 5+5 |
| ST-1000 | 4.0 | 12 | 6+6 |
| ST-1250 | 4.5 | 12 | 6+6 |
| ST-1600 | 5.0 | 12 | 6+6 |
| ST-2000 | 6.0 | 12 | 8+6 |
| ST-2500 | 7.2 | 15 | 8+6 |
| ST-3150 | 8.1 | 15 | 8+8 |
| ST-4000 | 8.9 | 15 | 8+8 |
| ST-4500 | 9.7 | 16 | 8+8 |
| ST-5000 | 10.9 | 17 | 8.5+8.5 |
| ST-5400 | 11.3 | 17 | 9+9 |
Dimensions are listed from the current product information. Confirm the complete technical specification and required test documents for the belt being quoted. This dimensional table is not a working-tension calculation.
Information to Include in Your Enquiry
- ST rating, belt width, roll length and top/bottom cover thicknesses.
- Material, conveying distance, throughput and loading conditions.
- Conveyor tension, speed, pulley diameters and splice requirements.
- Cover grade, requested test documents, quantity and destination.
Lead time is confirmed for each order.
For a quotation, email info@vulcotec.com with your application, belt specification, required quantity and destination.

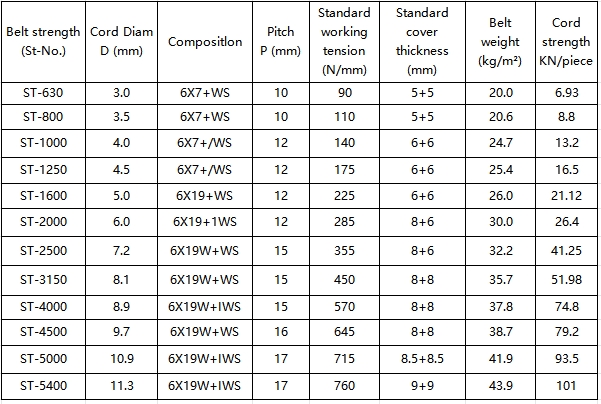

Original Technical Table
What steel cord belt range does Vulcotec list?
Vulcotec lists steel cord conveyor belts from ST630 to ST5400 and widths from 600 to 2,600 mm. Send the required belt rating, width, length, cover requirements and conveyor conditions for review. Refer to the product page's technical table and confirm the final specification in the order documentation.
